trucks

Unit 26 HD

    What’s a Rich Text element?

    The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

    Static and dynamic content editing

    A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

    How to customize formatting for each rich text
    • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
    • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Truck Specifications

    • Dimension: L. 16,50 mt. x L. 5,35 mt. x H. 3,97
    • Weight: 45 Ton
    • License Plate: XA755CH
    • Power Consumption: 35 Kva on 3-Phase, 400V, 125A CEE connector

    Equipment Specification

    Vision-Slomo Area

    • Cameras: 24x Sony High Definition Cameras HDC1500/HDC2500 /HDC
    • Matrix: Imagine Comm. IP 3 3G/HD/SD Multiformat 354×560
    • Patch: Argosy 896 Patch Points
    • Video-Testing: Leitch VTM 450 HD waveform-vector
    • Monitorwall:VISION: 7 x Ikegami 17”, 7 x Vutrix 19 Quad Split”, 7 x Vutrix dual 9”SLOMO: 12 x Vutrix 24″ Quad Split
    • Rec / Play: 8x XDCam 1500, 8xEVS XT3 HD, 5xDVD recorder
    • Framestore: 16x Imagine Comm, 6x For-A 9500
    • Distr/Up-Down Conv: 10 x Imagine Comm selenio xConv, 10 x Aja Downconv

    Production Area 1

    • Switcher: Sony MVS 8000X Multiformat HD/3G/4K, 8 ME (1080i), 4 DME, 84 input , 24 output, 8 format converter, color corr, cliprecorder
    • Monitorwall: 21 x Vutrix 24” Quad split, 3x Vutrix 17” Quad Split
    • Undermonitor: TSL Tallyman TM2 plus

    Production Area 2

    • 10x Vutrix 24” Quad split, MVS 8000X satellite ME

    Graphic Area

    • 8x Vutrix 19” Quad split

    Audio Area

    • Audio Mixer: Calrec Artemis beam, 340 ch, 64 tracks, 32 Aux, 48 Groups 16 Mains, external fiber stage boxes
    • Audio Matrix: Madi connection to IP3 192×192, 120×120 Aes
    • Backup Mixer: Yamaha 01v96
    • Dolby: 2x DP571, 2xDP572, 1xDP570
    • Monitoring: Videotek ASM100, Dolby LM 100, 6x monitoring speaker
    • Rec / Play: CD, Compact Flash, Hard Disk
    • Monitorwall: 4 x Vutrix 17” Quad split
    • Intercom: Clear-com / Eclipse 112 ch
    • ISDN/PSTN: 2x Glensound GS1U050
    • Commentator Box: 2x Glensound GDC-6432
    • Wireless: 2x Motorola GM360, 10x GP340
    • Lens: Fujinon-Canon
    • Tripod: Vinten, Cartoni

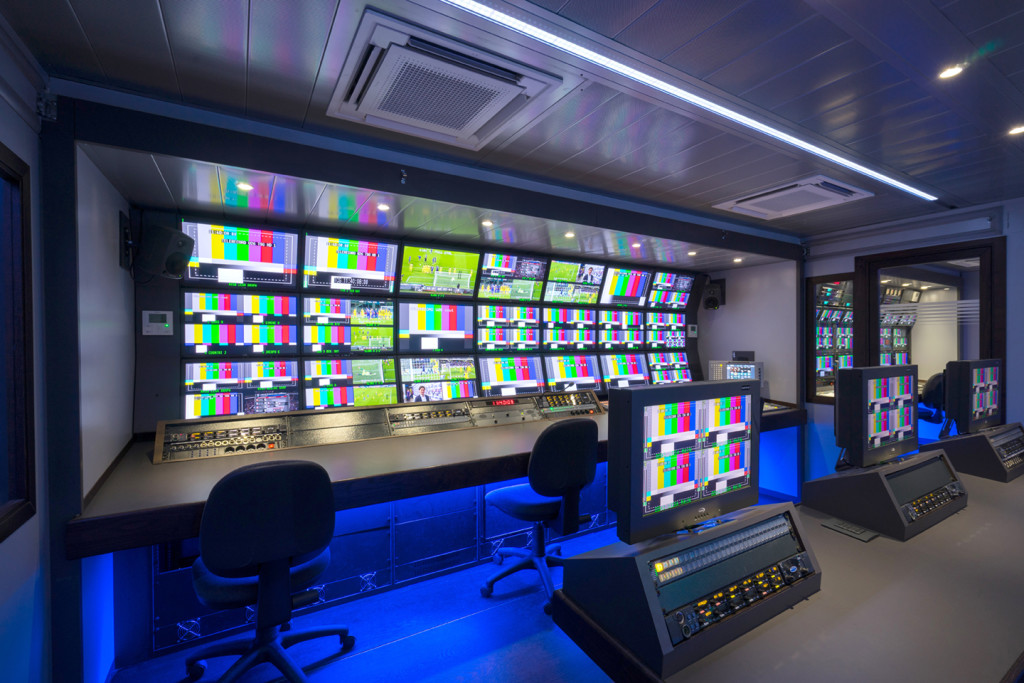

    Unit 26 Monitor Wall
    Unit 26 Floor Plan
