trucks

California

Denali | US

California is an HD mobile unit supported by ST22.

SPECIFICATIONS MONITOR WALLS FLOOR PLANS

specifications

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information

"62' long x 13'6"" high x 16' wide - expanded w/o tractor
Double expando
208volts, 3 phase, 300 amps

Production

Grass Valley Kayenne K-Frame Switcher, 126 input with internal still store & DVEs
Abekas DVEous MX Dual Twin HD/SD DVE with CPL control
Wohler 8-channel Pre-Listen Stations

Communications

Telex ADAM Matrix Intercom - 136 Ports
12 Wet RTS TW PL Channels
40 RTS BP-325 Dual Listen Beltpacks
10 RTS SPK-300 Biscuit Box User Stations
28 Beyer DT-280 Single Muff Headsets
28 Beyer DT-290 Dual Muff Headsets
8 IFB Channels with 14 RTS IFB Beltpacks
10 Motorola Walkie Talkies with 2 Base Stations
Avaya Partner ACS Phone System
4 TIF2000 - Telephone Interface Getner Phone Couplers (4 lines)
8 Ring Down Channels

Cameras

Sony HDC-4300 Hand Held HD Cameras
Sony HD CCUs for Fiber Operation Wired for 16 CCU's
Sony Large Lens Adapters with 7" Viewfinders, black
Vinten Vector 700 Pan Heads with Vinten Tripods & wheels
Sachtler Video 20 HH Panheads and Tripods

Lenses

Canon 86x Stabilized Zoom Lenses
Fujinon 22x7.8 HD Zoom Lenses
Fujinon 13x4.5 HD Wide Angle Lenses

Support Equipment

Evertz EQX Router
HD Video 356 inputs x 396 outputs
128 De-embed x 128 Embed
1 Evertz 672/672 AES/MADI/Analog Audio Router
9 MADI ports
4 Utility Frame Sync-U/C-D/C -AJA FS1
4 Everetz Time Code Reader / Generator
10 Outboard Evertz Router Heads

‍

Audio

Calrec Apollo Audio Console - 144 multi-layered faders;
282 Microphone Inputs & 496 Analog Line Outputs
192 AES Inputs & 212 AES Outputs - unbalanced
16 AES balanced inputs and outputs
12 MADI Interfaces
4 Hydra Field Boxes (48x16)
1 Modular Hydra Field Box
3 Meyer HD-1 Main Speakers
2 Yamaha HS-80M 8 Inch Surround Speakers
1 JBL LSR4312SP Subwoofer
2 ATI 8MX2 8 X 2 Submixer
Dolby Encoder/Decode Package available
1 DAYSEQUERRA ILM8 Loudness Meter available
2 Lance ADX-2400N DANTE Frames - Analog
2 Lance ADX-2400D DANTE Frames - Digital
2 Cedar DNS1500 Audio Effects available
1 DBX 1046 4 Channel Comp/Limiter available
4 Aphex 320D Audio Compellor available
2 Aphex 661 Audio Effects available
1 Universal Audio 2-1176 2 Channel Comp/Limiter available
1 Eventide H8000FW Verbal Effects (5.1) available
1 Eventide Eclipse 3.0 Verbal Effects (2 Channel) available
1 TC Electronic 902-111011 5.1 Verb/Effects (w/ 8 Channel AES Option) available
1 TC Electronic 903-010101 8 Channel AES Expansion Card available
1 TC Electronic 905-006020 Icon CPU (w/ Unwrap License) available
1 TC Electronic 906-ICON11 Icon Controller available
2 TC Electronic 960-100011 D-Two Multitap Rhythm Delay available
1 Blue Sky BMC MKII Bass Management Controller
1 Izotope ANR-B Audio Noise Reduction Units available
Network Technologies Inc Splitmux-DVI-4 Multitrack Viewer available
2 Cedar DNS1500 Noise Reduction Unit
54 Ward Beck D8204 AES Audio Distribution Amplifier
60 Ward Beck M8204 Stereo Audio DA
12 Ward Beck D8202 Audio D/A
12 Ward Beck D8203/75 Audio A/D
4 Ward Beck M8251 1X8 Analog Video DA for Word Clock
40 Ward Beck D6202B Dual Reclocking AES DA, 110 Ohm
40 Ward Beck T6303A D6202 Backplane
16 Cobalt Digital 9004 Dual 1X4 HD/SD Non-reclocking DA (For MADI)
10 Cobalt Digital 9253 Dual 1X4 AES/EBU Reclocking DA (75 Ohm)
1 Tascam RW2000 CD Player/Recorder
1 Tascam CD500B CD Player
Multitrack Recorders available on request
System wired to accept four multitracks with analog, AES or MADI I/O

Microphones

Entertainment Show Microphone Kits as well as microphones for a wide variety of sports and specialty applications available on request

Record & Playback

VTRs as requested - wired for 16 VTs, 5 servers: D5, HD Cam, SRW, DVC Pro, Digibeta, BVW-75
1 Lance Gang Roll System
2 Screener 2 Channel H.264 Recorder
2 DVD Recorders

Graphics

Upon Request

Cable

9mm SMPTE Cable- 15 -50m 15 -100 m
9mm Mult: 3 (4x250')
4 Pair 4 -25' 4 -50' 4 -100' 4-200'
4 Pair fanouts: 7 sets
W2 8 -300' 8 -100' 8 -50 5 -25'
8 Female XLR to Male W2 Connector Breakout Box
4 Male XLR to Female W2 Connector Breakout Box
9 Female W2 to Male XLR Fan Out 10 ft
10 Male W2 to Female XLR Fan Out 10 ft
9 Male W2 to Male XLR Fan Out 10 ft
TAC 12 ST - ST 1 -1500' 3 -1000' 2 -500'
TAC-12 Military 6 -500'
TAC-4 Military 4 -500'
2 TAC 12 Military fanouts
2 TAC 4 to LC Duplex Fan Out
5 Pair HD Coax Looms 10 -125' 12 -250'
2 Ramlatch to 4 Male W2 (4' Tails)
3 Rmlatch to Female W2
Assorted XLR and BNC

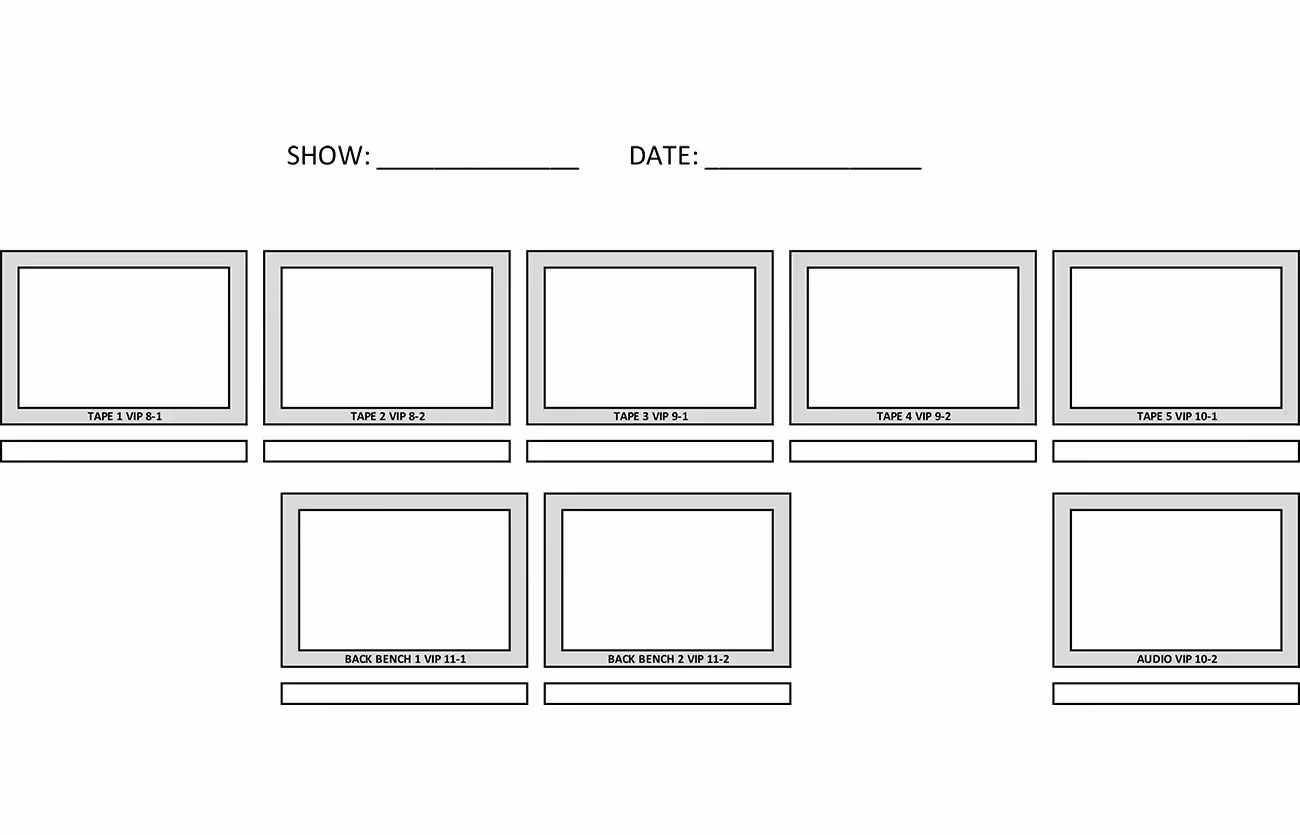

monitor walls

Download Monitor Walls

go up

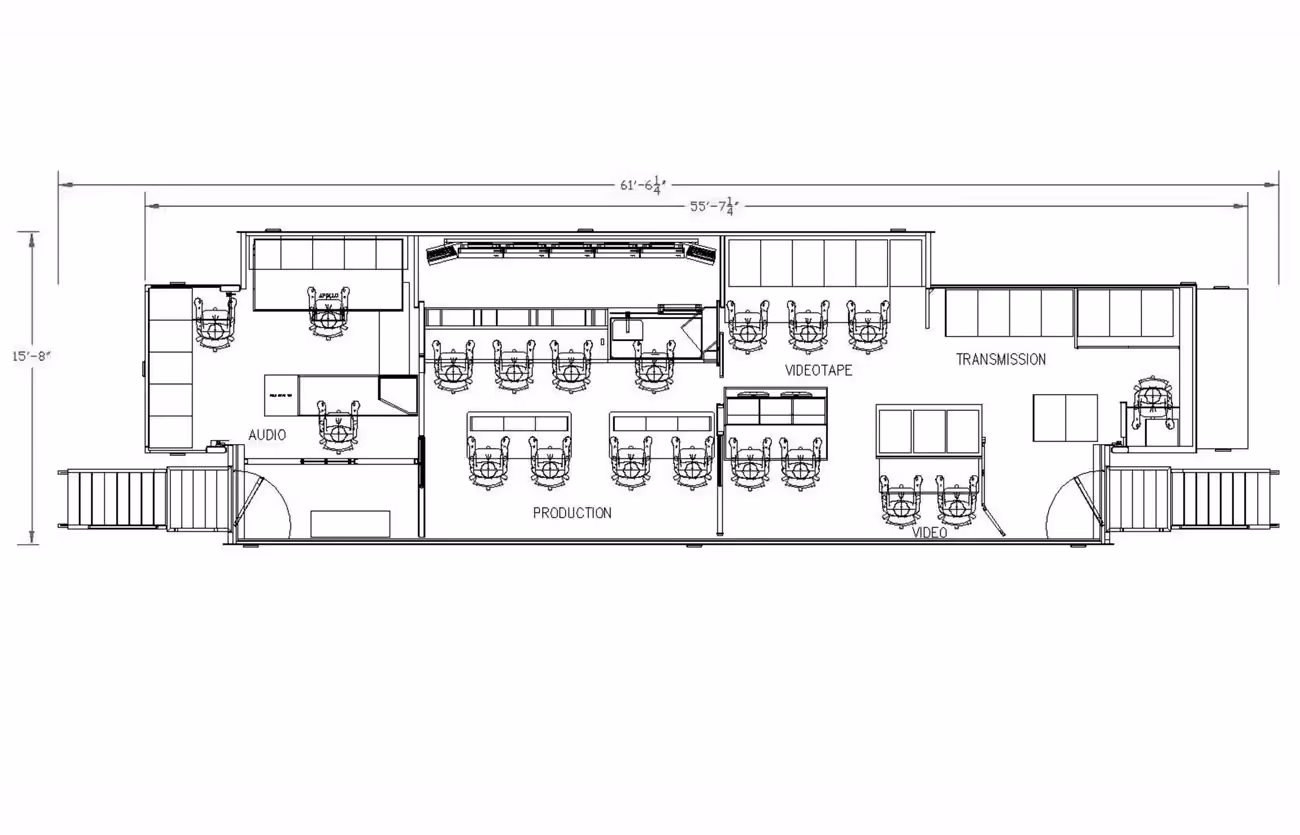

floor plans
