trucks

HD14

HD14

NEP | Sweden

HD14 is a medium sized, open unit equipped for entertainment and sports events, with a built in storage area. With an expanded production room it offers comfort and excellent working conditions.

    What’s a Rich Text element?

    The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

    Static and dynamic content editing

    A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

    How to customize formatting for each rich text
    • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
    • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Trailer

    L/W/H: 15,5 m / 2.55 m extracted / 4 m
    Power: 1x 63 A, 3-phase 400 VA CEE

    Cameras

    Grass Valley LDX-86N | Fiber
    Grass Valley LDX86N XtremeSpeed | Fiber | 3 and 6 x speed
    11x - 100x lenses

    Production room (5.1 audio monitoring)

    Grass Valley Kayak Vision mixer

    48 i/p, 24 o/p
    2,5 M/E
    4 keyers per M/E
    iDPM/eDPM
    6 ch RAM Recorder

    VTR/Hard Drives/EVS

    Cabled for 4 VTR
    Cabled for 3 EVS XT3

    USB-recorder

    Sony HDCAM SR/HDCAM/Digibeta/XDCAM available on request

    EVS HD XT2/XT3/XT Via, XFile, IP Director, XT Access and XStore available on request

    Graphics System

    VizEngine or on request from NEP Sweden Graphics

    Broadcast Control System

    Lawo Virtual Studio Manager (VSM)
    UMD:s and GPI/Tally controlled by VSM
    Hard- and software redundancy

    Video, routing, multiviewers and converters

    Imagine Platinum MX HD video router

    128 x 256 3G/HD/SD
    Integrated multiviewer

    2 Trilogy Mentor signal pattern generator with changeover
    8 Lynx Cross converters/ Synchronizers External signals
    3 Lynx Down converters TX processors
    6 Lynx Downconverters
    2 Lynx Embedders/Deembedders
    4 Lynx SDI Distributions

    Riedel Mediornet

    1 Mediornet Modular frame
    2 Mediornet Compact Pro stageboxes

    Audio

    Audio mixer

    Lawo mc2 56 MK II
    Full Genelec 5.1 audio monitoring

    Audio router

    Lawo Nova 73 with 4096 x 4096 routing capacity
    96 DSP channels
    80 mic/line i/p, 96 analog i/p, 120 analog o/p
    160 AES i/p, 160 AES o/p

    TC Electronic Mastering 6000
    1 Dolby E Encoder & Decoder

    Audio follow video possible by using VSM

    Intercom

    Riedel Artist 64
    12 internal / 4 external intercom panels
    2 ch duplex radio bases, integrated with intercom system
    12 Motorola GP360 hand radios

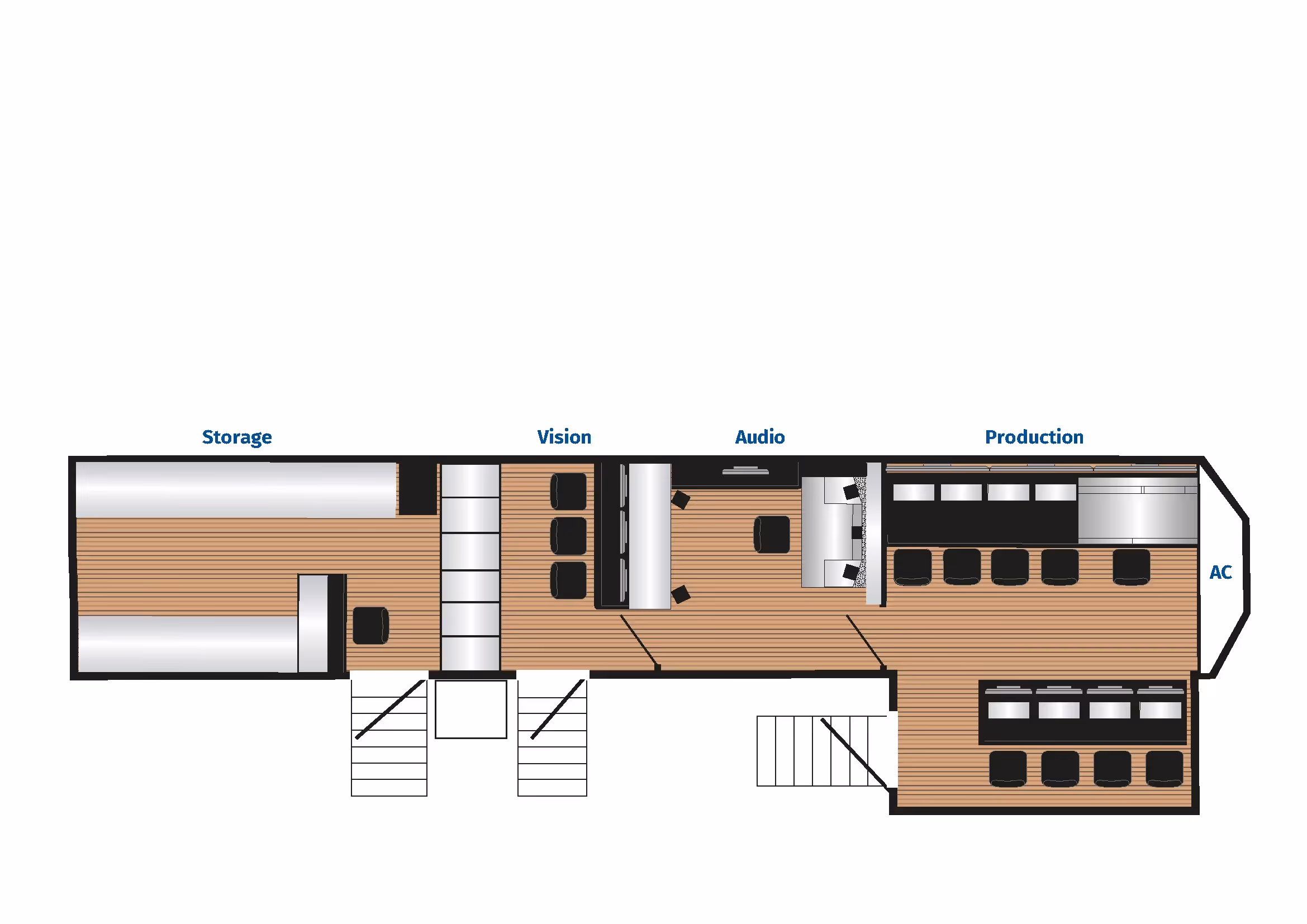

    HD18 Floor Plan
