trucks

Supershooter 10

NEP | US

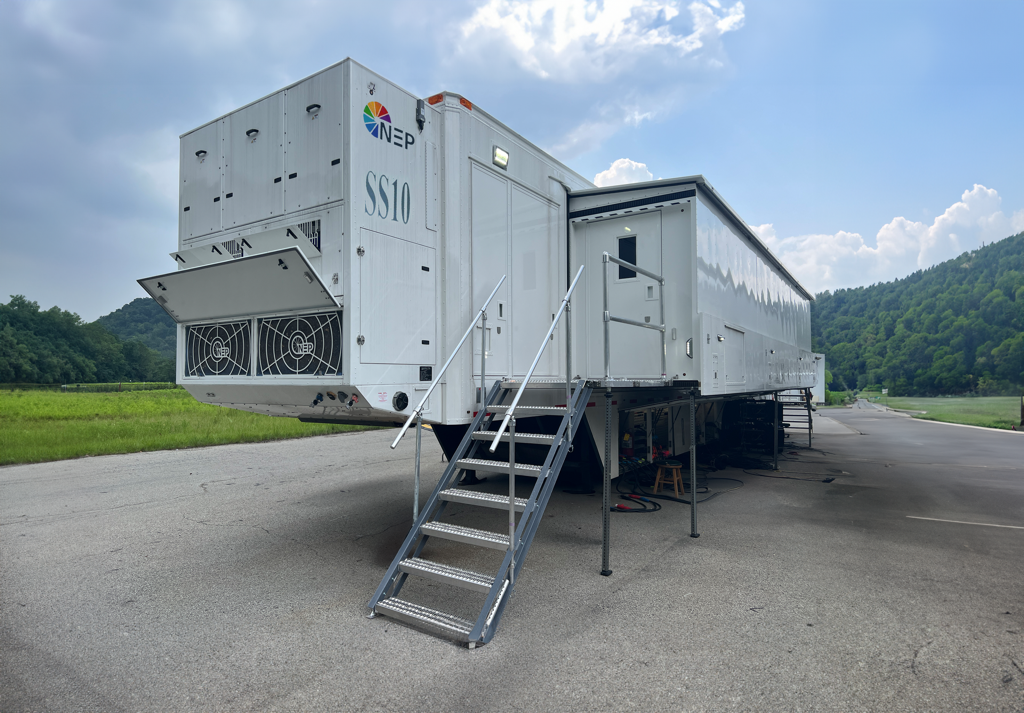

Supershooter 10 is an IP-based mobile unit capable of 1080p, HDR or 4K. It travels with its support unit, ST36.

SPECIFICATIONS MONITOR WALLS FLOOR PLANS

specifications

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information

SS10 Requires 1 400A or 2 200A services

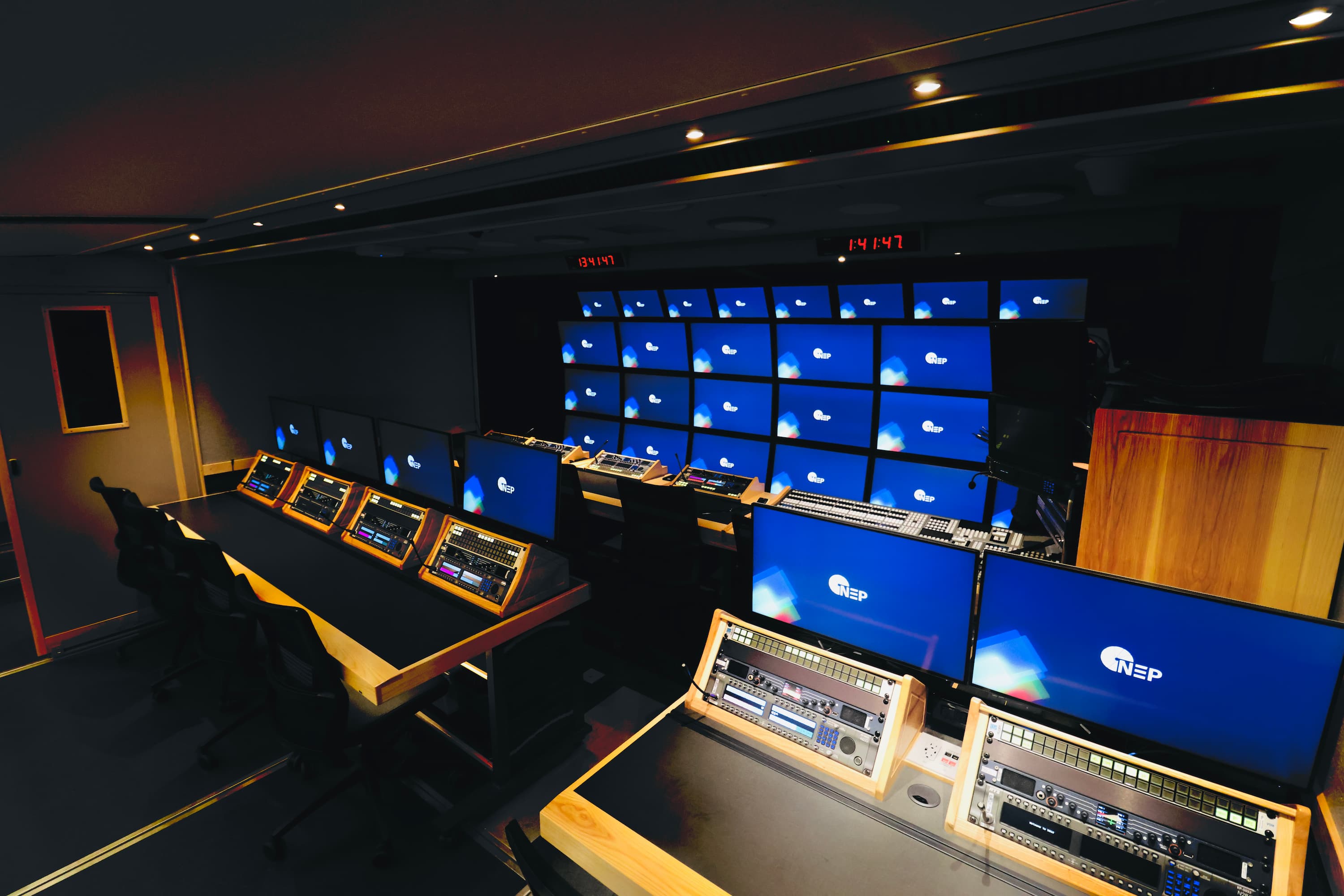

Production

GVG Kayenne XP-Frame switcher, 128 inputs/96 Outputs, 9 M/E
16 IDPM / eDPM / 2D DPM
Still Store Movies
Flexkey / Double Take
Elite Package

Communications

Adam Intercom System - 368 Ports
10 dual listen BP325 Beltpacks
10 DANTE quad listen Beltpacks
20 Single-muff Headsets
20 Double-muff Headsets
8 IFB Beltpacks
12 walkie talkie with 2 Base Stations
6 TIFF Telephone Interface
1 QKT’s
4 Ringdown

Cameras

10 Sony HDC3500 Cameras
2 Sony HDC5500 Cameras
2 Sony HDC2500 Cameras
8 Sony HDLA Large Lens Adapter
8 Hard Camera Panhead & Tripod
8 HH Camera Panhead & Tripod
14 CCU on board

Lenses

8 Canon 122x Hard Lens
2 Canon 24x HH Lens
2 Canon 20x5 Wide Angle Lens
2 Canon 14x4.3 Wide Angle Lens

Support Equipment

NEP TFC IP Router
HD video - 352 inputs x 328 outputs
234 inputs x 253 output embed/de-embed
MADI 18 inputs x 18 outputs
AES 96 inputs x 96 outputs
Analog audio 96 inputs x 96 outputs
10 HD Video over fiber Transmitters
2 AJA FSHDR Frame Syncs
10 UDX/Color Correctors
4 HD embed/de-embed cards (16 channels)
2 Light Kits
Monitors: 10 -21" LCD

‍

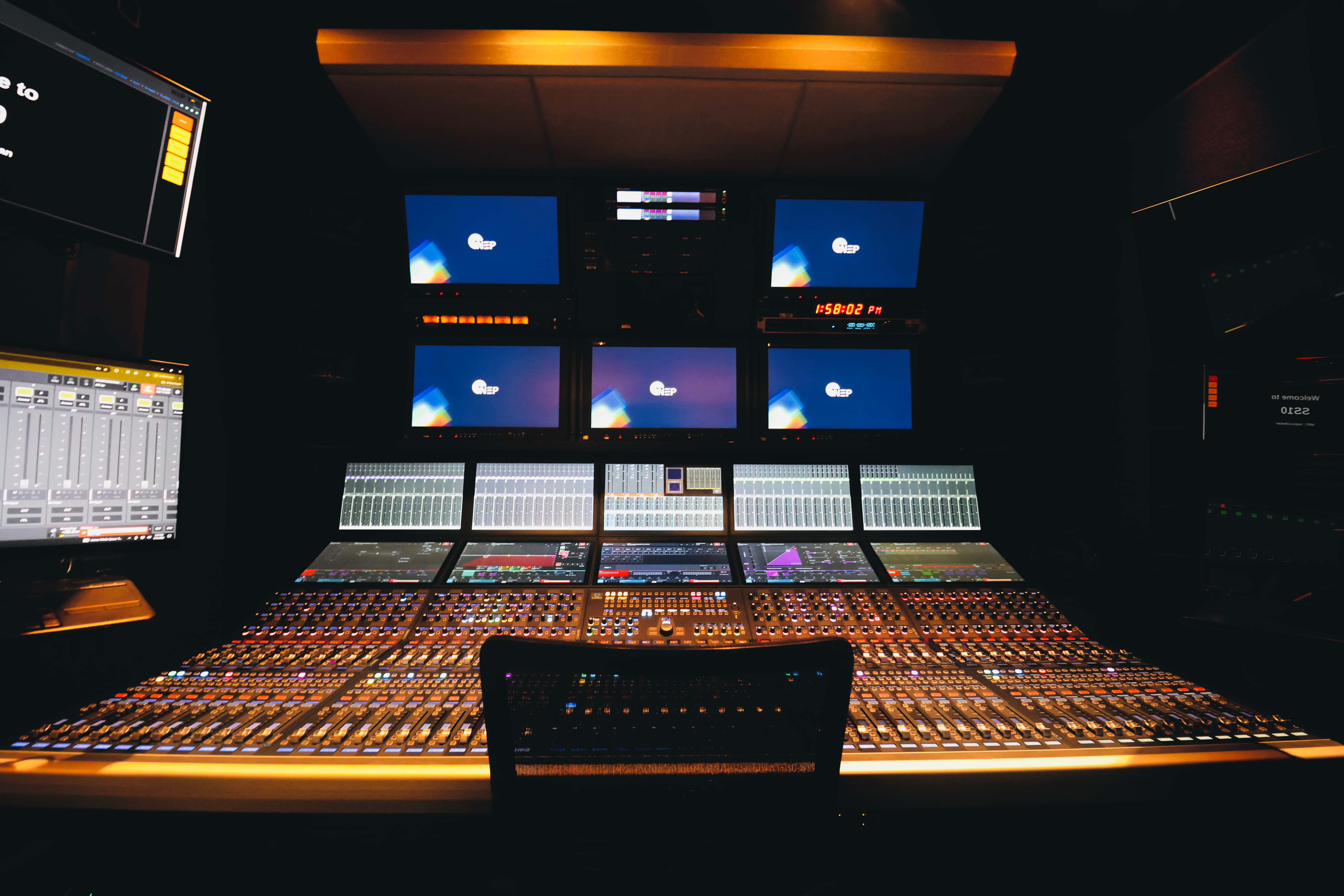

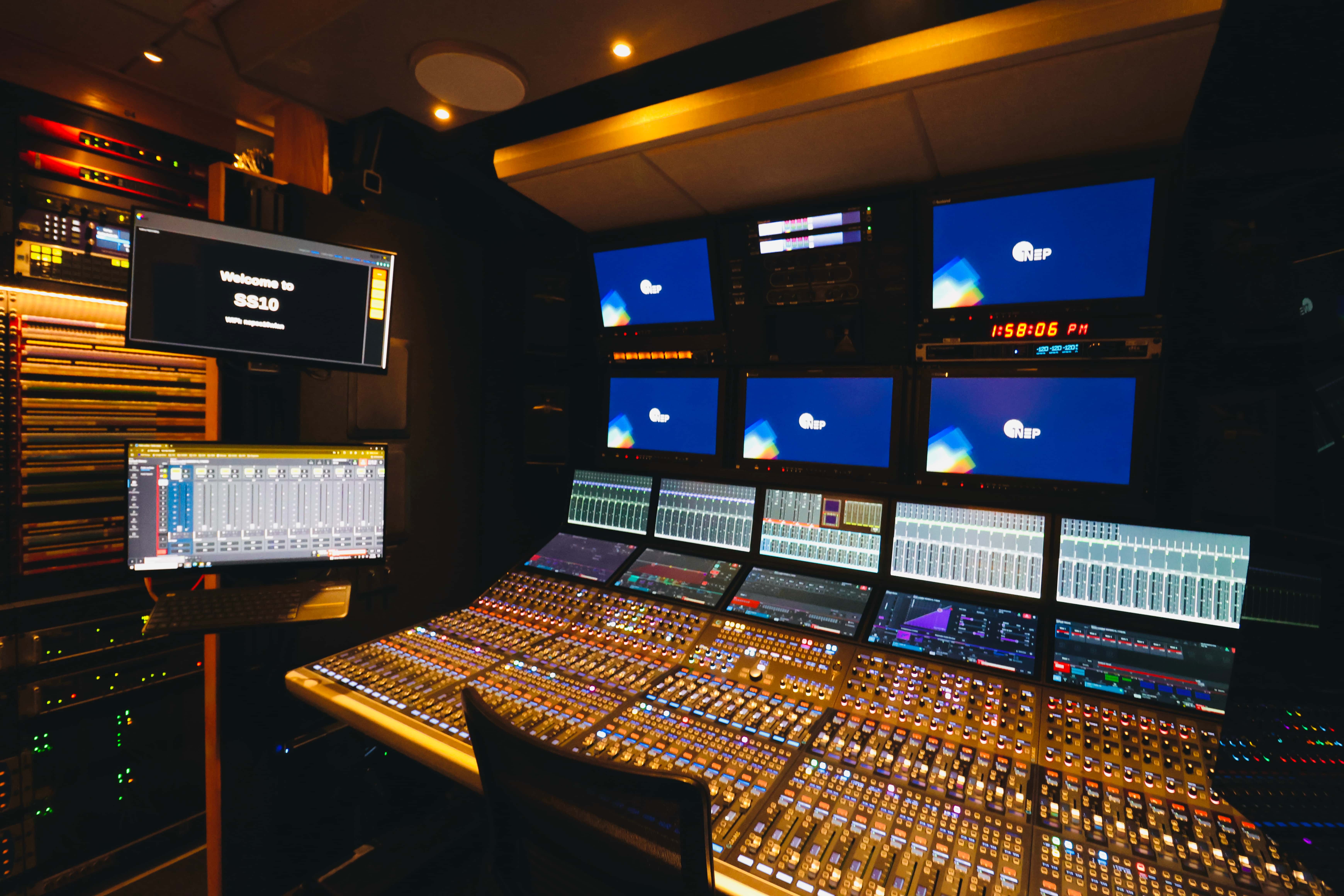

Audio

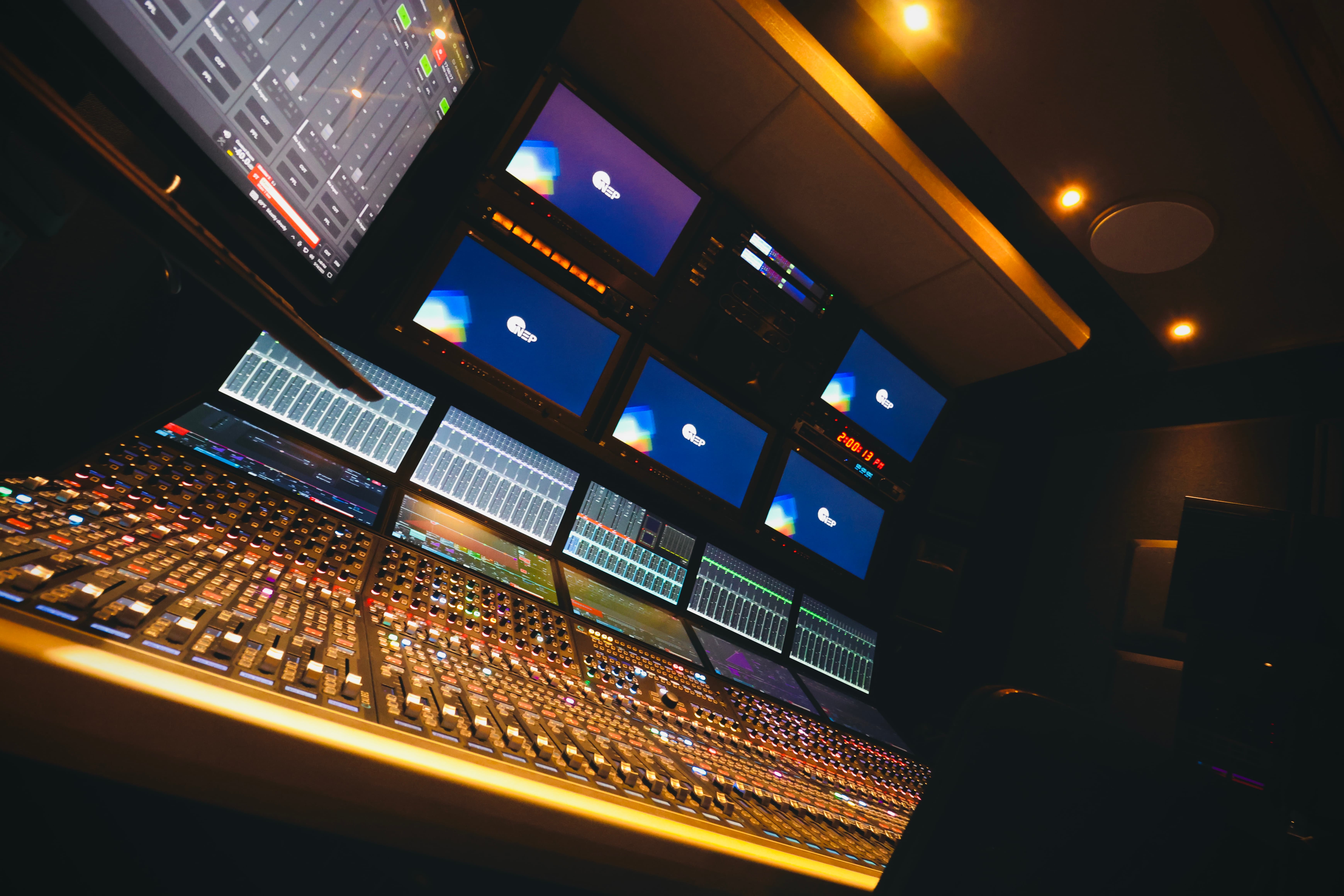

Calrec Argo Q with 60 dual faders
Impulse Core (AoIP)
3 Calrec AoIP Stage Box
1 Hydra AoIP Field Boxes (48x16)
2 Hydra II AoIP Field Boxes (24x8)
6 MADI inputs and outputs
1 Neural Up-Mix/Down-Mix
2 Digicart E

Microphones

13 Announcer Headsets
2 Glensound Inferno Announce Consoles
4 Daltec Announce Consoles
8 Studio Tech Announce Consoles
4 Studio Tech DANTE Announce Consoles
8 Long Shotgun mics
8 Short Shotgun mics
8 Stereo Long Shotgun mics
8 Stereo Short Shotgun mics
8 Stick mics
8 Lavalier mics

Record and Playback

5 EVS XT VIA LSM - 12Ch
1 EVS XS VIA 6ch Spot Box
1 EVS XF[3]
1 EVS Sport Hub 3
1 EVS IP Director
1 EVS XT Access
1 KiPro-Go USB Recorder

Graphics

Upon Request

Cable

9mm SMPTE: 5 -500' 12 -250' 10 -100' 10 -50'
9mm SMPTE Mult: 3 (5x100')
Mini Triax: 5 -500' 10 -250' 10 -100' 10 -25'
Triax Mults: 2
DT-12: 4 -250' 6 -100' 6 -50'
DT-12 Fanout Sets: 12
DT-12 Breakout Boxes: 4
2 Pair 2 -200' 4 -25'
4 Pair 6 -100' 6 -50' 6-25'
Assorted single line XLR
TAC 24 ST - ST: 1 -1500' 4 -500' 4 -250' 4-150' or less
TAC 12 ST - ST: 4 -500' 2 -150' or less
TAC 12 Fanouts: 4
TAC 4 ST-ST: 4 -300' or less
5 Pair HD Coax Loom: 10 -125'
10 Pair HD Coax Loom: 5 -100' 10 -20'
Assorted single line coax
2 sets of 75' 4/0 power cable
1 set of 50' 4/0 power cable
2 sets of 25' 4/0 power cable

‍

monitor walls

Download Monitor Walls

go up

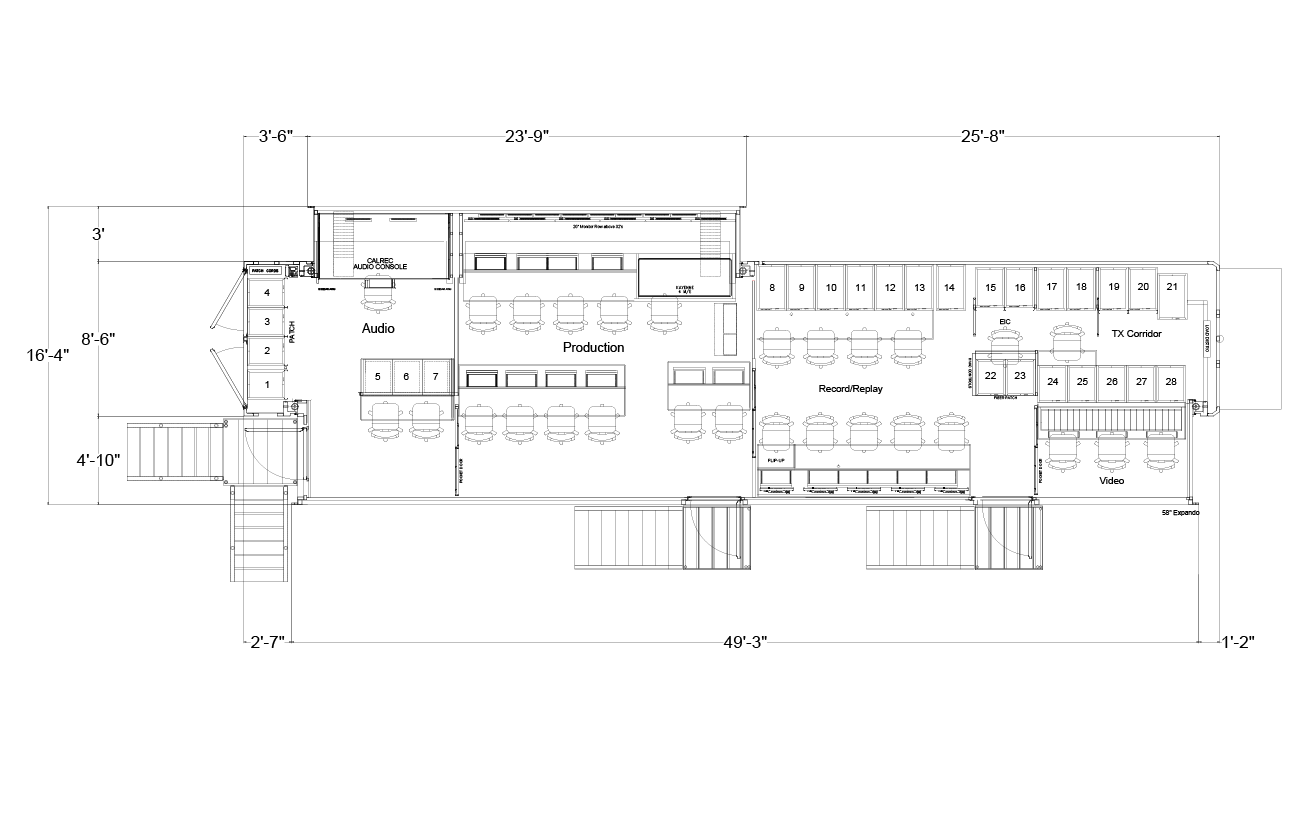

floor plans

Download Floor Plans

go up
