trucks

Supershooter 24

Supershooter 24

NEP | US

Supershooter 24 is an HD twin mobile unit capable of 1080i and 720p. Trailers include Supershooter 24 A & B, and its support unit ST25.

    What’s a Rich Text element?

    The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

    Static and dynamic content editing

    A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

    How to customize formatting for each rich text
    • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
    • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Vehicle-Specific Information
    • 81' 6" long x 13' 6" high x 19' 2" wide - expanded w/tractor (A & B units)
    • 61' 6" long x 13' 6" high x 19' 2" wide - expanded without tractor (A & B units)
    • Double Expando (A & B Units)
    • 208 volts, 3 phase
    • A Unit/1 - 200 amp service
    • B Unit/2 - 200 amp service or 1 - 300 amp service
    Production
    • GVG Kayenne K-Frame Switcher, 192 Inputs / 96 Outputs, 9 M/E
    • 16 IDPM / eDPM / 2D DPM
    • Still Store Movies
    • Flexkey
    • DoubleTake
    • Elite Package
    Communications
    • Adam Intercom System - 128 Ports
    • 11 dual listen beltpacks
    • 10 DANTE dual listen beltpacks
    • 3 DANTE quad listen beltpacks
    • 10 IFB beltpacks
    • 10 DANTE IFB beltpacks
    • 12 single muff headsets
    • 11 double muff headsets
    • 6 TIF - Telephone Interfaces
    • 6 QKT
    Cameras
    • 14 Sony HDC3500 Camera
    • 2 Sony HDC4300 Camera
    • 12 Sony HDLA Large Lens Adapter
    • 10 Hard Camera Panhead & Tripod
    • 10 HH Camera Panhead & Tripod
    • 18 CCUs on Board

    Lenses

    • 10 Canon 95x Hard Lens
    • 8 Canon 22x Hand Held Lens
    • 3 Canon 14X4.7 Wide Angle Lens
    Support Equipment
    • Evertz EXE
    • HD video - 450 inputs x 162 outputs
    • 144 inputs x 112 outputs embed/de-embed (16 channels)
    • MADI 32 inputs x 32 outputs
    • AES 64 inputs x 64 outputs
    • Analog audio 256 inputs x 256 outputs
    • 24 Utility Frame Syncs/Processors
    • 10 HD Video over Fiber Transmitters
    • 4 Fiber Booth Field Kits
    • Monitors: 14-21" HD LCD
    Audio
    • Calrec Alpha Digital Audio Console with Bluefin DSP Processing
    • 340 Channels with full signal processing
    • 48 Multi-track busses
    • 20 Aux busses
    • 86 Fader, A/B Layers
    • 208 analog inputs & 96 analog outputs
    • 80 AES inputs & 80 AES outputs
    • 8 MADI inputs & 8 MADI outputs
    • 2 Hydra II Field Boxes (48x16)
    • 2 Hydra II Field Boxes (24x8)
    • 1 DTS Neural Up-Mix/Down-Mix Package
    • 2 Digicart
    • 1 SpotOn Audio Replay
    Microphones
    • 14 Announcer Headsets
    • 6 Daltech Announce Consoles
    • 7 DANTE Announce Consoles
    • 10 Short Shotgun Microphones
    • 10 Long Shotgun Microphones
    • 8 Stick Microphones
    • 8 Lavalier Microphones
    Record & Playback
    • 8 EVS XTVIA 12 Channel LSM 10 GB
    • 1 EVS XT3 6 Channel Spotbox 10 GB
    • 2 EVS X-File[3]
    • 2 Sony PDW HD-1500 XDCam VTR
    Graphics
    • Upon request
    Cables
    • TAC-12 ST to ST: 1 -1000' 1 -500' 5 -250' 5 -125'
    • 9mm SMPTE: 7 -500' 12 -250' 32 -100' 7 -50'
    • 9mm SMPTE Mult: 3 (6x125)
    • 5 Pair HD Coax Loom 8 -125'
    • DT-12: 5 -250' 5 -100' 5 -50'
    • 10 DT12 Fanout Sets
    • 5 DT12 Breakout Boxes
    • 7 sets of 75' 4/0 power cable

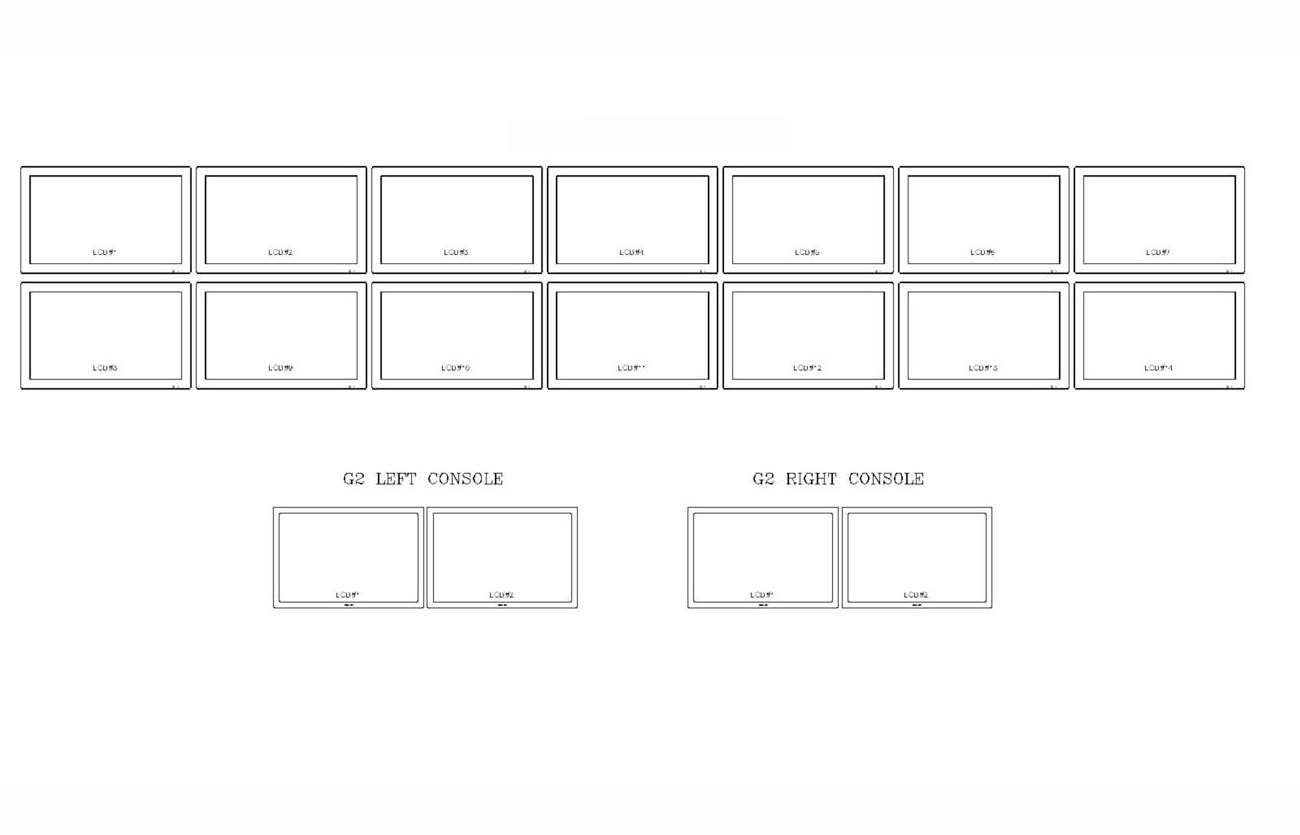

    Supershooter 24 Graphics Monitor Wall
    Supershooter 24 Production Monitor Wall
    Supershooter 24 Tape Monitor Wall
    Supershooter 24A Floor Plan

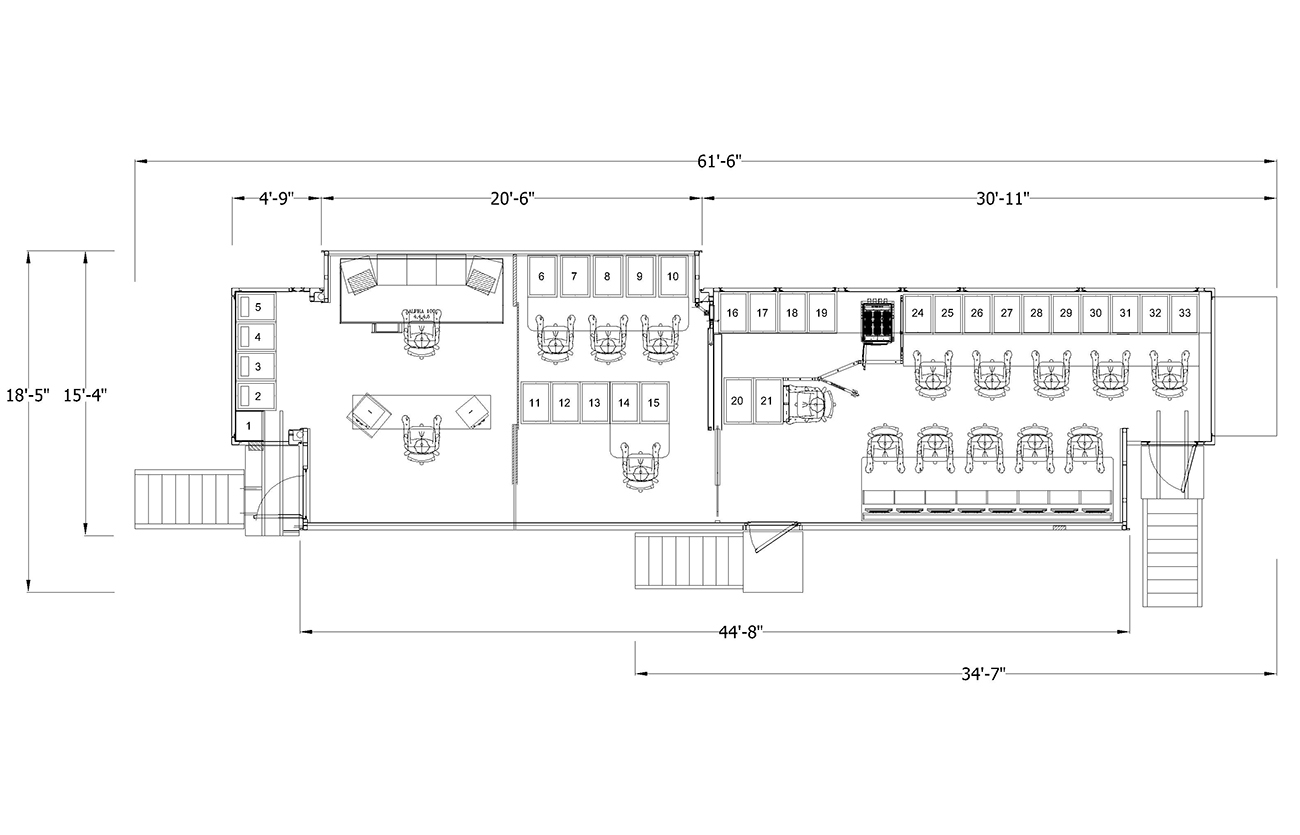

    Supershooter 24B Floor Plan
    Supershooter 24C Floor Plan
