Supershooter 33
NEP | US
Supershooter 33, formerly Pegasus, is an HD twin mobile unit capable of 1080i, 720p and 1080p.
trucks
Supershooter 33
specifications
What’s a Rich Text element?
The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.
Static and dynamic content editing
A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!
How to customize formatting for each rich text
- Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
- Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
Vehicle-Specific Information
- Unit A Dimensions: 54' 7" long x 15'6" wide (expanded) x 13'6" high
- Double Expando

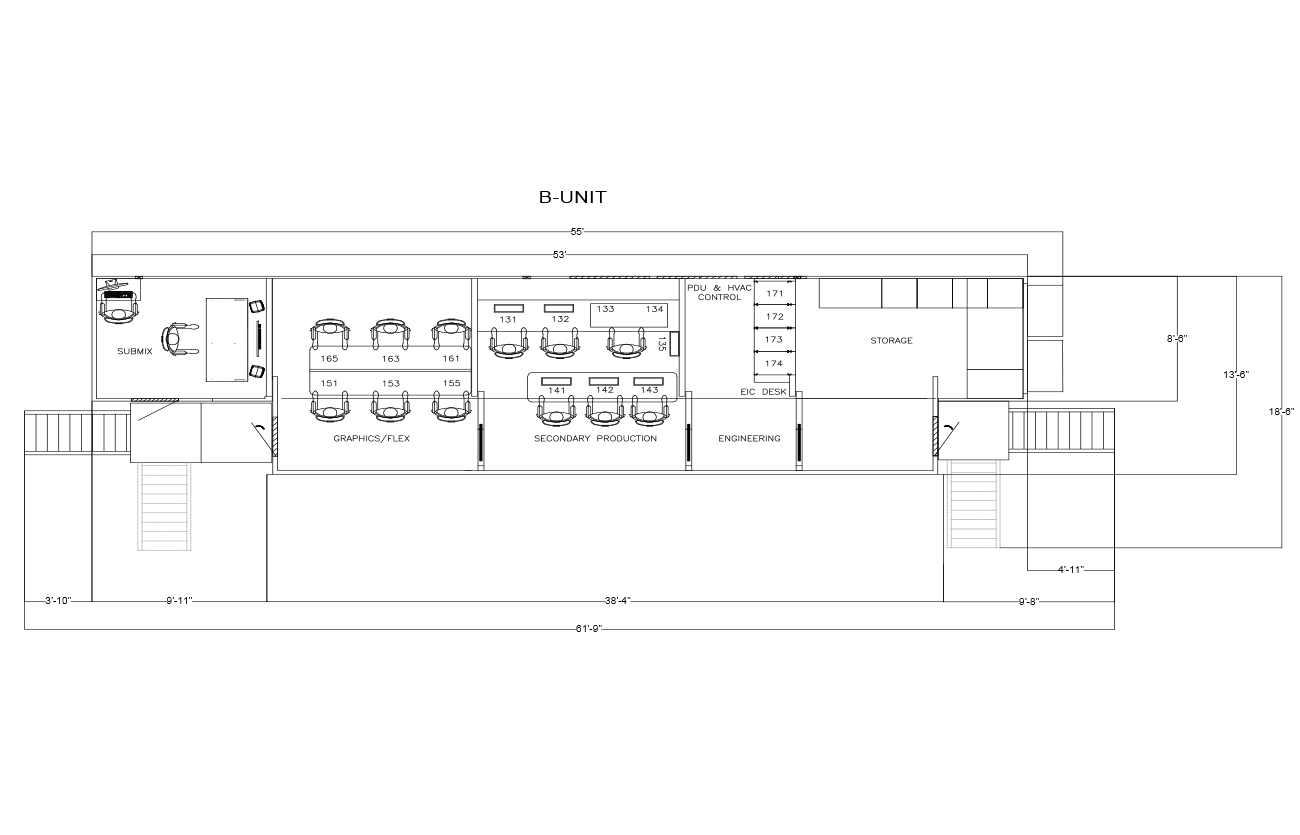

- Unit B Dimensions: 55' long x 15'6" wide (expanded) x 13'6" high
- Curb Side Expando
- A Unit: 1 300 amp Service Required
- B Unit: 1 200 amp Service Required
Production
- GVG Kayenne K-Frame, 160 Inputs / 48 Outputs, 5.5 M/E
- 16 IDPM / eDPM / 2D DPM
- Still Store Movies
- Flexkey
- DoubleTake
- Elite Package
- Add’l 2 M/E Control Panel with Menu Panel (in B unit)
- 1 M/E Korona Panel for Field Use
Communications
- Adam Intercom System - 288 ports
- 30 Dual Listen Beltpacks
- 18 DANTE Quad Channel Beltpacks
- 13 IFB Beltpacks
- 8 DANTE IFB Beltpacks
- 27 Single Muff Headsets
- 22 Double Muff Headsets
- 16 Walkie Talkies with 2 base stations
- 2 ring down phone lines
- 8 TIF - Telephone Interfaces
- 8 QKT
Cameras
- 10 HDC-2500 Handheld Cameras
- 2 Sony HDC-1500 Handheld Cameras
- 4 Sony HDC-4300 4k/HDR Handheld Cameras
- 4 HD POV Cameras
- 7 Sony HDLA 1500 Large Lens Adapters
- 7 Hard Camera Panheads & Tripods
- 9 Hand Held Camera Panheads & Tripods
- 2 sets hard camera wheels
- 16 CCU on board
Lenses
- 6 Fujinon XA88x8.8ERM Hard Lens
- 1 Fujinon XA101x8.9ERM Hard Lens
- 2 Fujinon HA22x7.8BERM Hand Held Lens full tri servo
- 2 Fujinon UA14x4.5BERM Wide Angle Hand Held Lens full tri servo
- 10 Fujinon HA13x4.5BERM Wide Angle Hand Held Lens full tri servo
Support Equipment
- Evertz EQX Router
- 576 inputs x 576 outputs HD Video
- 190 x 176 embed/de-embed
- 16 x 16 MADI
- 6 AJA FSHDR Frame Syncs
- 10 HD Frame Syncs/Color Correctors
- 6 Fiber Oticom Sets (5 Bi-Directional HD-SDI paths per set)
- 10 HD Video over Fiber Transmitters
- 6 Fiber Booth/Field Kits
- 1 Light kit
- Monitors: 20- 22” LCD
Audio
- Calrec Apollo Digital Audio Console with BlueFin II
- 192 Mic/Line Inputs
- 32 Analog Inputs x 80 Analog Outputs
- 128 AES Inputs x 128 AES Outputs
- 72 Channel Faders, 16 Group Faders, 8 Main Faders
- Calrec Summa Console (in B-Unit)
- 4 Calrec Hydra II Field Boxes (24x8)
- 3 Calrec Hydra II Field Boxes (48x16)
- 2 Digi Cart E
Microphones
- 10 Announce Headsets
- 10 Studio Tech Talkback Boxes
- 13 Stick Mics
- 8 Short Shotgun Mics
- 10 Stereo Long Shotguns
Record & Playback
- 5 EVS XT3 12 Channel
- 1 EVS XT3 6 Channel Spotbox
- 1 EVS X-File[3]
- 2 EVS X-Hub[3]
- 2 AJA KiPro Recorders
- 2 Black Magic Studio 2 SD card recorders
Graphics
- Upon Request
Cables
- 9mm SMPTE: 15-500' 15-250' 6-100' 6-50'
- DT-12 4 -250' 4 -125'
- DT-12 Fan-out Sets 10
- DT-12 Feed Through Boxes 8
- TAC 12 ST to ST 12 -1500' 6 -500' 9 -250' 4 -150' or less
- TAC 4 ST to ST 3 -300' or less
- 5 Pair HD Coax Loom 2-125’ 4 -150' 9 -25'
- 10 Pair HD Coax Loom 8 -50'
- Mini Triax: 2 -500' 10 -25' 8 -100'
- 1 Triax Mult
- 4 sets of 75' 2/0 Power Cable
