Supershooter 7
NEP | US
Supershooter 7 is an IP-based mobile unit capable of 1080p, HDR or 4K. It travels with its support unit, ST7.
trucks
Supershooter 7
specifications
What’s a Rich Text element?
The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.
Static and dynamic content editing
A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!
How to customize formatting for each rich text
- Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
- Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
Vehicle-Specific Information
- SS7 Requires 1 400A or 2 200A services
- ST7 Requires 1 200A Service
Production
- GVG Kayenne XP-Frame switcher, 128 inputs/96 Outputs, 9 M/E
- 16 IDPM / eDPM / 2D DPM
- Still Store Movies
- Flexkey / Double Take
- Elite Package
Communications
- Adam Intercom System - 368 Ports
- 10 dual listen BP325 Beltpacks
- 20 DANTE quad listen Beltpacks
- 20 Single-muff Headsets
- 33 Double-muff Headsets
- 10 DANTE IFB Beltpacks
- 8 IFB Beltpacks
- 12 walkie talkie with 2 Base Stations
- 10 TIFF Telephone Interface
- 6 QKT’s
- 4 Ringdown
Cameras
- 10 Sony HDC3500 Cameras
- 4 Sony HDC4300 Cameras
- 2 Sony HDC1500R Cameras (LPS)
- 4 Sony HDC4300 Cameras
- 9 Sony HDLA Large Lens Adapter
- 9 Hard Camera Panhead & Tripod
- 8 HH Camera Panhead & Tripod
- 12 CCU on board
Lenses
- 9 Canon HD 122x Zoom lens
- 4 Canon 24x HH Zoom lens
- 1 Canon 18x HH Zoom lens
- 3 Canon 4.3x WA Zoom lens
Support Equipment
- NEP TFC IP Router
- HD video - 352 inputs x 328 outputs
- 234 inputs x 253 output embed/de-embed
- MADI 18 inputs x 18 outputs
- AES 96 inputs x 96 outputs
- Analog audio 96 inputs x 96 outputs
- 10 HD Video over fiber Transmitters
- 2 AJA FSHDR Frame Syncs
- 6 Frame Sync/Color Correctors
- 8 UDX/Color Correctors
- 5 HD embed/de-embed cards (16 channels)
- 4 Light Kits
- Monitors: 6 -21" LCD; 4 -18' LCD; 2 -9" LCD

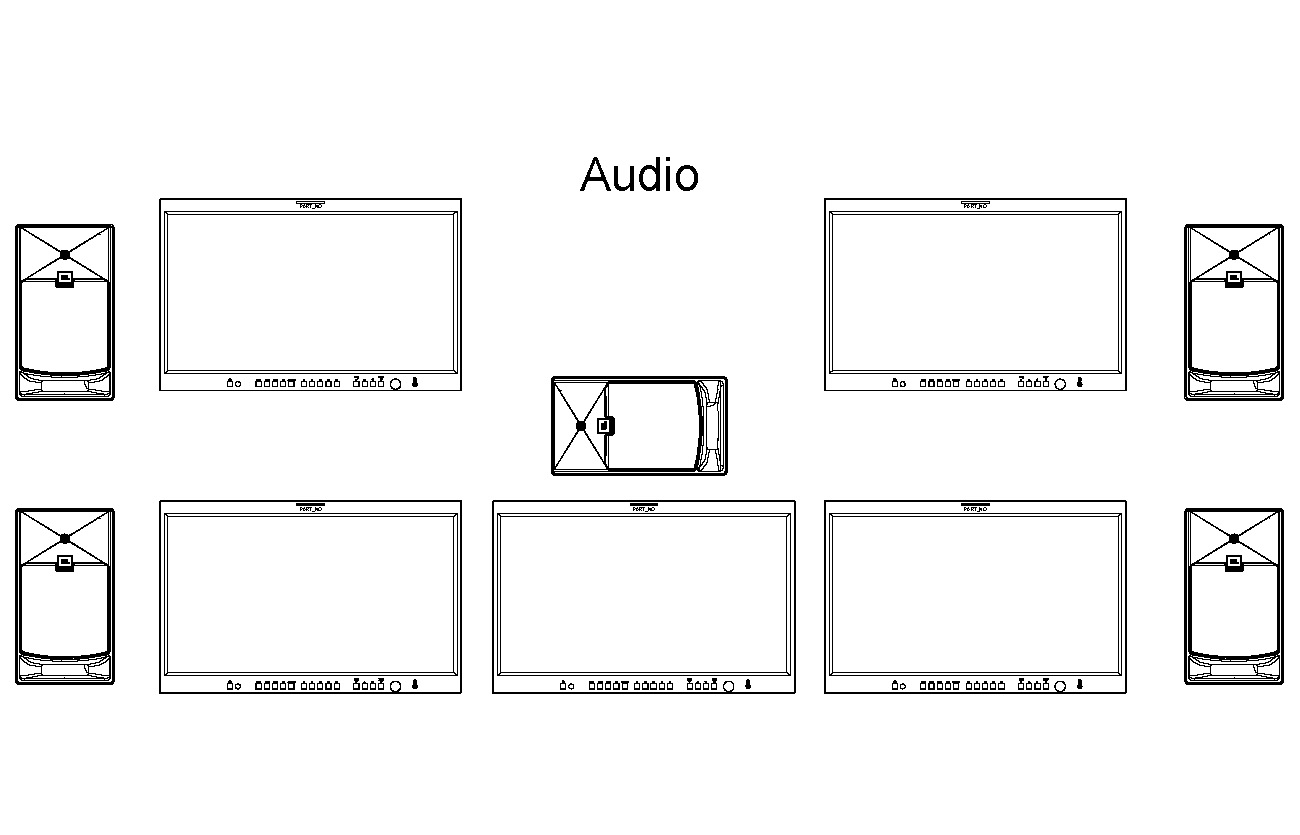

Audio
- 1 Calrec Apollo 64 Faders
- Bluefin 2 High Density Signal Processing Module Providing:
- Impulse Core (AoIP)
- 512 Channels (at 48kHz) with full signal processing
- 128 Mix busses for Group and Main outputs 96 Track busses
- 48 Aux Busses
- 96 Mic inputs, 96 Line outputs
- 96 AES inputs and outputs
- 6 MADI inputs and outputs
- 2 Neural Up-Mix/Down-Mix
- 2 Digicart E
- 1 CD Player
Microphones
- 8 Announcer Headsets
- 2 Glensound Inferno Announce Consoles
- 4 Daltec Announce Consoles
- 8 Studio Tech Announce Consoles
- 4 Studio Tech DANTE Announce Consoles
- 8 Long Shotgun mics
- 11 Short Shotgun mics
- 8 Stereo Long Shotgun mics
- 8 Stereo Short Shotgun mics
- 8 Stick mics
- 8 Lavalier mics
Record and Playback
- 5 EVS VIA LSM - 12Ch
- 1 EVS XS VIA 6ch Spot Box
- XNet-VIA Network
- 1 EVS XF[3]
- 1 10 Gig Network with 40Gig uplink
- 1 KiPro-Go USB Recorder
Graphics
- Upon Request
Cable
- 9mm SMPTE: 5 -500' 12 -250' 10 -100' 10 -50'
- 9mm SMPTE Mult: 3 (6x125')
- Mini Triax: 5 -500' 10 -250' 10 -100' 10 -25'
- Triax Mults: 2
- DT-12: 6 -250' 6 -100' 4 -50'
- DT-12 Fanout Sets: 10
- DT-12 Breakout Boxes: 4
- Pair 2 -200' 4 -100' 12 -25'
- Assorted single line XLR
- TAC 24 ST - ST: 2 -1500' 2 -1000' 2 -500' 4 -250' 4-150' or less
- TAC 12 Fanouts: 4
- TAC 4 ST-ST: 4 -300' or less
- 5 Pair HD Coax Loom: 10 -125'
- 10 Pair HD Coax Loom: 8 -25'
- Assorted single line coax
- 2 sets of 75' 4/0 power cable
- 1 set of 50' 4/0 power cable
- 2 sets of 25' 4/0 power cable
