NCPX is an HD mobile unit capable of 1080i, 720p or 1080p. It travels with its support truck NCPXB.

SPECIFICATIONSMONITOR WALLSFLOOR PLANS

    specifications

    What’s a Rich Text element?

    The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

    Static and dynamic content editing

    A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

    How to customize formatting for each rich text
    • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
    • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Vehicle-Specific Information
    • 70' long x 13'6" high x 20' wide - expanded with tractor
    • 55' long x 13'6" high x 20' wide - expanded without Tractor
    • A-Unit: Streetside Expando, B-Unit: No Expando
    • A-Unit: 2 208 volt, 3 phase, 200 amps OR 1 208 volt, 3 phase, 400 amps
    • B-Unit 1 208 volt, 3 phase, 200 amps
    Production
    • GVG Kayenne K-Frame Switcher, 96 Inputs / 48 Outputs, 5 M/E
    • 16 IDPM / eDPM / 2D DPM
    • Still Store Movies
    • Flexkey
    • DoubleTake
    • Elite Package
    Communications
    • Adam Intercom System - 128 Ports
    • 10 dual listen beltpacks
    • 12 DANTE Dual Channel Beltpacks
    • 12 DANTE Quad Channel Beltpacks
    • 20 IFB Beltpacks
    • 18 DANTE IFB Beltpacks
    • 16 single muff headsets
    • 16 double muff headsets
    • 6 walkie talkies with 2 base stations
    • 1 phone system with 12 lines
    • 4 ring down phone lines
    • 10 TIF - Telephone Interfaces
    • 4 QKT
    Cameras
    • 12 Sony HDC2500 Camera
    • 2 Sony HDC4300 Camera
    • 8 Sony HDLA Large Lens Adapters
    • 8 Hard Camera Panhead & Tripod
    • 6 HH Camera Panhead & Tripod
    • 2 sets Hard Wheels
    • 14 CCUs on Board
    • 20 CCUs Wired For
    Lenses
    • 1 Canon 100x9.3 Hard Lens
    • 3 Canon 86x9.3 Hard Lens
    • 1 Cannon 75x9.3 Hard Lens
    • 3 Cannon 72x9.3 Hard Lens
    • 4 Cannon 22:1 Hand Held Lens
    • 4 Canon 4.7 Wide angle Lens
    Support Equipment
    • Utah Scientific
    • HD video - 1052 inputs x 1052 outputs
    • 107 inputs x 107 outputs embed/de-embed
    • AES 64 inputs x 64 outputs
    • Analog audio 67 inputs x 103 outputs
    • 10 HD Video over Fiber Transmitters
    • 2 Light kits
    • 3 Embedders with 16 Audio Channels
    • 2 De-Embedders with 8 Audio Channels
    • Monitors: 10 - 21" LCD, 4 - 9" SDI/Analog
    Audio
    • Calrec Alpha Digital Audio Console
    • Bluefin DSP Processing
    • 340 Channels with full signal processing
    • 48 Multi-track busses
    • 20 Aux busses
    • 96 Fader, A/B Layers
    • 128 analog inputs & 128 analog outputs
    • 32 AES inputs & 32 AES outputs
    • 48 MADI inputs & 48 MADI outputs
    • 1 Calrec Zeta Audio Console
    • 1 Dolby Encoder/Decoder Package
    • 1 DTS Neural Up-Mix/Down-Mix Package
    • 2 Digicart
    • 1 CD Player
    Microphones
    • 15 Announcer Headsets
    • 6 Daltech Announce Consoles
    • 12 DANTE Announce Consoles
    • 6 Short Shotgun Microphones
    • 8 Long Shotgun Microphones
    • 8 Stick Microphones
    • 6 Lavalier Microphones
    Record & Playback
    • 6 EVS XT3 6 Channel LSM
    • 2 EVS VIA 12 Channel LSM
    • 1 EVS XT3 6 Channel Spotbox
    • 1 EVS X-File[3]
    • 1 EVS IP Director
    • 1 EVS XT Access
    • 2 EVS Xhub[3]
    Graphics
    • Upon request
    Cables
    • 9mm SMPTE: 19 -500' 8 -250' 6 -100'
    • 9mm SMPTE Looms: 3 (5x250')
    • TAC-12 ST-ST: 11 -1000' 13 -500' 7 - 250  6 -100' or less
    • TAC-12 Military: 2 -500'
    • TAC-12 Fanouts: 6
    • 5 Pair HD Coax Loom 5 -150' 1 -25' 2 -10'
    • 10 Pair HD Coax Loom 1 -25'
    • Assorted Single Line Coax
    • DT12 4 -500' 6 -250' 4 -100'
    • 4 DT12 Fanout sets
    • 6 DT12 Breakout Box(es)
    • 4 Pair Mult 2 -250' 3 -100'
    • 6 Pair Mult 3 -200' 1 -100'
    • Assorted Single Line XLR
    • 2 sets of 100' 2/0 Camlock Power Cable
    • 2 sets of 75' 4/0 Camlock Power Cable
    • 1 set of 50' 2/0 Camlock Power Cable

    monitor walls

    NCPX Production Monitor Wall
    2-2015_NCPX_TapeMonitorWall
    NCPX Video Monitor Wall
    NCPX B Maintenance/Robo Monitor Wall

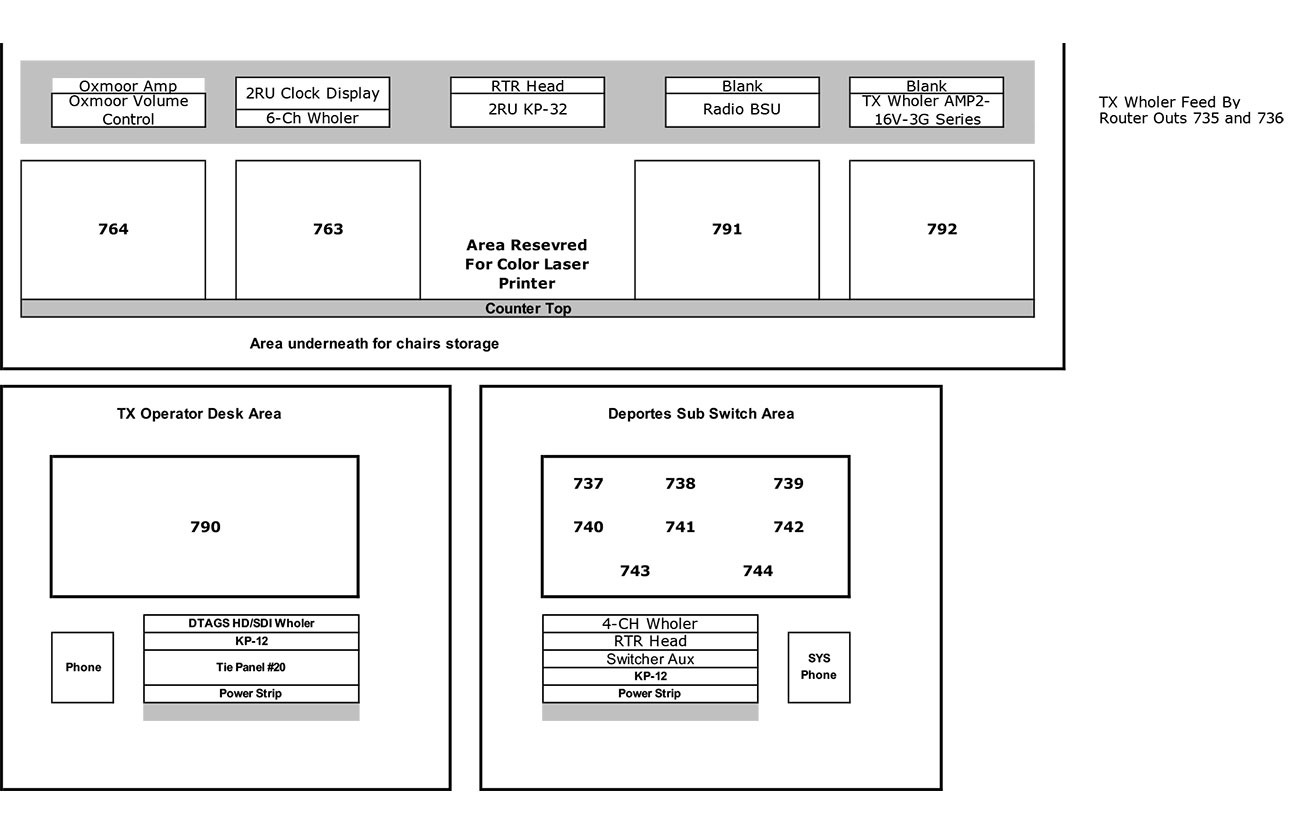

    NCPX B Office/SubMix Monitor Wall
    NCPX B Tape/Rack Room Monitor Wall

    floor plans

    Download Floor Plans
    go up
    NCPX A Floor Plan
    NCPX B Floor Plan
