Supershooter 6

Supershooter 6

NEP | US

Supershooter 6 is an IP-based mobile unit capable of 1080p, HDR or 4K. It travels with its support unit, ST6.

SPECIFICATIONS MONITOR WALLS FLOOR PLANS

specifications

Download Specifications

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information

SS6 Requires 1 400A or 2 200A services
ST6 Requires 1 200A Service

Production

GVG Kayenne X-Frame switcher, 128 inputs/96 Outputs, 9 M/E
16 IDPM / eDPM / 2D DPM
Still Store Movies
Flexkey / Double Take
Elite Package

Communications

Adam Intercom System - 368 Ports
20 dual listen BP325 Beltpacks
16 DANTE quad listen Beltpacks
20 Single-muff Headsets
20 Double-muff Headsets
10 DANTE IFB Beltpacks
10 IFB Beltpacks
12 walkie talkie with 2 Base Stations
6 TIFF Telephone Interface
6 QKT’s
4 Ringdown

Cameras

10 Sony HDC3500 Cameras
2 Sony HDC5500 Cameras
2 Sony HDC2500 Cameras (LPS)
8 Sony HDLA Large Lens Adapter
8 Hard Camera Panhead & Tripod
8 HH Camera Panhead & Tripod
12 CCU on board

Lenses

8 Canon HD 111x Zoom lens
5 Canon 24x HH Zoom lens
2 Canon 4.3x WA Zoom lens

Support Equipment

NEP TFC IP Router
HD video - 352 inputs x 328 outputs
234 inputs x 253 output embed/de-embed
MADI 18 inputs x 18 outputs
AES 96 inputs x 96 outputs
Analog audio 96 inputs x 96 outputs
12 HD Video over fiber Transmitters
2 Light Kits
2 Fiber Booth/Field Kits
Monitors: 10 -21" LCD; 4 -9" LCD

‍

Audio

1 Calrec Apollo 64 Faders
Bluefin 2 High Density Signal Processing Module Providing:
Impulse Core (AoIP)
512 Channels (at 48kHz) with full signal processing
128 Mix busses for Group and Main outputs 96 Track busses
48 Aux Busses
96 Mic inputs, 96 Line outputs
96 AES inputs and outputs
6 MADI inputs and outputs
2 Neural Up-Mix/Down-Mix
2 Digicart E
1 CD Player

Microphones

11 Announcer Headsets
4 Studio Tech 230 Announce Consoles
4 Daltec Announce Consoles
4 Studio Tech 236 DANTE Announce Consoles
8 Long Shotgun mics
8 Short Shotgun mics
4 Stereo Shotgun mics
8 Stick mics
8 Lavalier mics

Record and Playback

5 EVS VIA LSM - 12Ch
1 EVS XS VIA 6ch Spot Box
XNet-VIA Network
2 EVS Xhub[3]
1 EVS XF[3]
1 EVS XTAccess
1 EVS IP Director
1 10 Gig Network with 40Gig uplink
1 KiPro-Go USB Recorder

Graphics

Upon Request

Cable

9mm SMPTE: 10 -500' 10 -250' 10 -100' 10 -50'
9mm SMPTE Mult: 2 (5x100')
Mini Triax: 8 -250' 10 -100' 10 -25'
Triax Mults: 2
DT-12: 8 -250'
DT-12 Fanout Sets: 6
DT-12 Breakout Boxes: 4
2 Pair XLR 8 -100' 8 -25'
4 Pair XLR 6 -100' 6 -50' 6-25'
Assorted single line XLR
TAC 24 ST - ST: 2 -1500' 2 -1000' 2 -500' 4 -250'
TAC 12 Fanouts: 1
TAC 4 ST - ST: 4 -300'
5 Pair HD Coax Loom: 5 -125'
10 Pair HD Coax Loom: 4 -100' 6 -25'
Assorted single line coax
2 sets of 75' 4/0 power cable
1 set of 50' 4/0 power cable
2 sets of 25' 4/0 power cable

‍

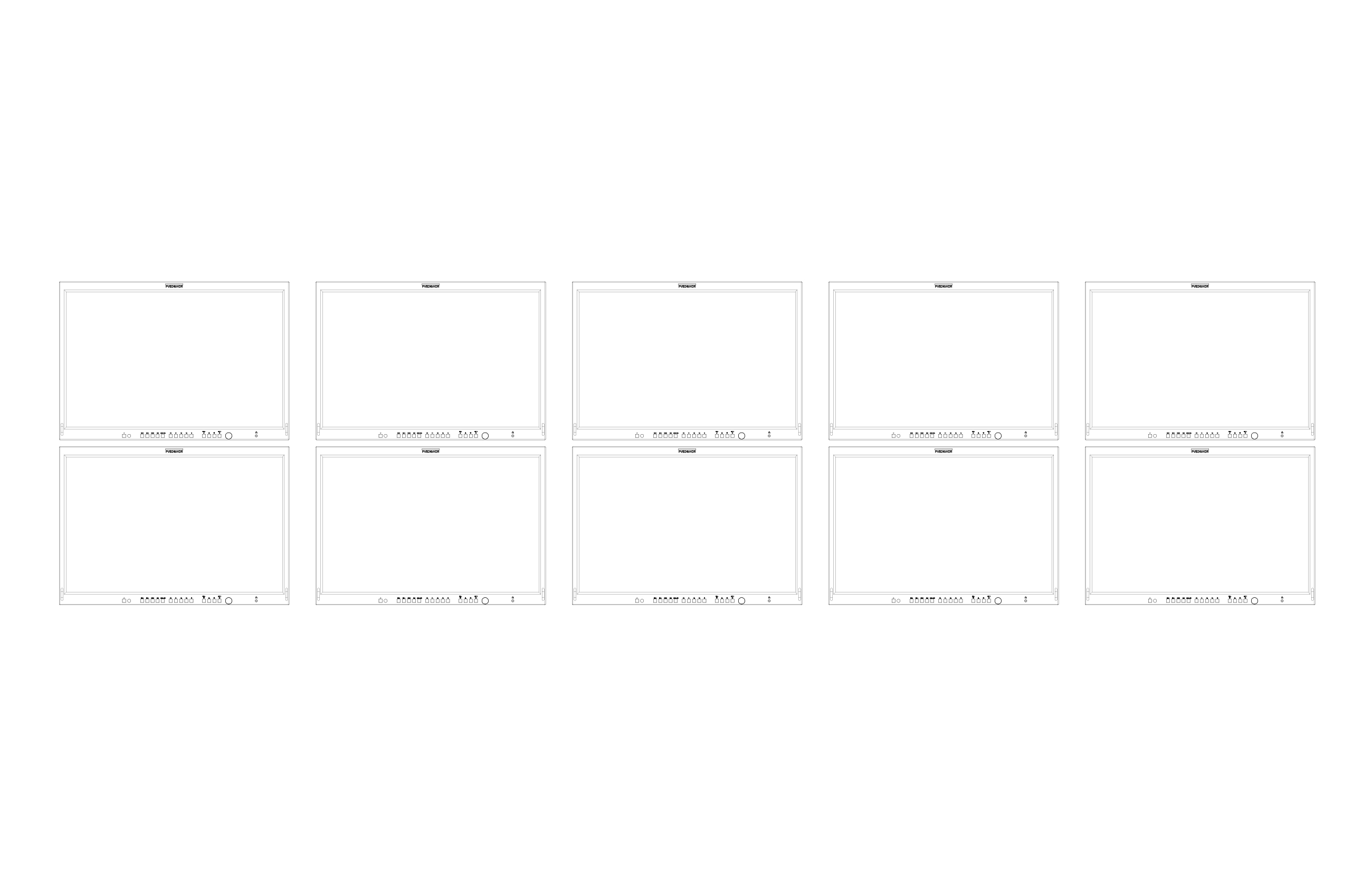

monitor walls

Download Monitor Walls

floor plans

Download Floor Plans
